Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts

Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts
Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts

Gambar besar :  Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts

Detail produk:
Nama merek: Datacard
Nomor model: SD460
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 UNIT
Harga: dapat dinegosiasikan
Kemasan rincian: Karton / Palet
Waktu pengiriman: Itu tergantung pada jumlah pesanan Anda
Syarat-syarat pembayaran: T/T
Kontak

Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts

Deskripsi
Jenis: Printer ID Card Datacard SD460 dan Sparepartnya Nomor model: SD460
Merek: Kartu data Teknologi Cetak: Sublimasi pewarna/transfer termal resin langsung ke kartu
Konektivitas: USB 2.0 dua arah kecepatan tinggi; Ethernet 10 Base-T/100-Dase-TX (dengan lampu aktivitas) Jaminan: 3 bulan
Kondisi: Baru / diperbarui
Menyoroti:

Datacard Card Printer

,

PVC Card Printer

,

Peak Performance Card Printer

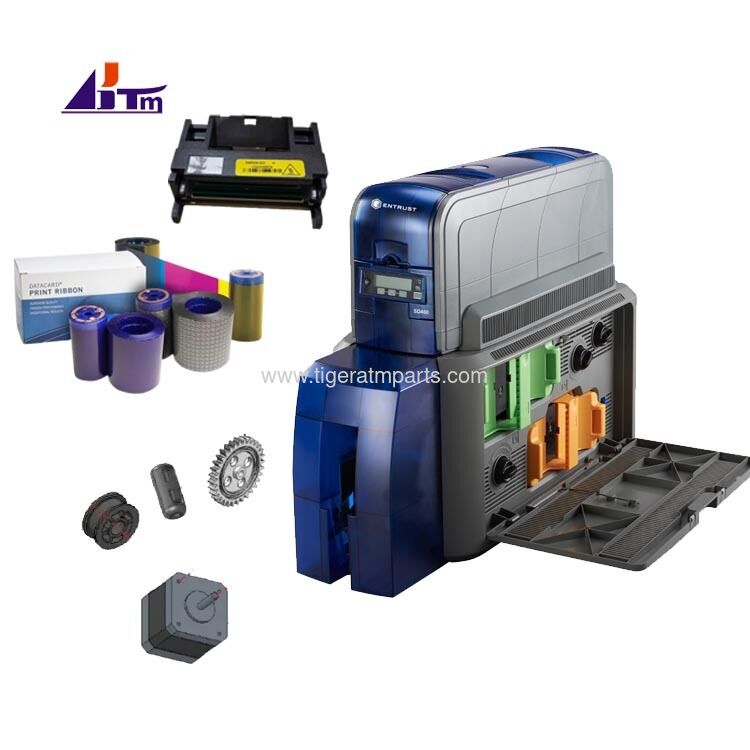

Datacard SD460 ID PVC Card Printer with Laminator Replacement Parts



Keep your Datacard SD460 ID PVC Card Printer running at peak performance with our full range of high-quality replacement parts. As a dedicated supplier, we offer comprehensive coverage of genuine-grade components designed specifically for the SD460 model, ensuring seamless compatibility and reliable operation for your card printing needs.


Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts 0

Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts 1

Datacard SD460 ID PVC Card Printer With Laminator Replacement Parts 2

Full Range of Replacement Parts for Datacard SD460

Supplies

Description Part Number
Cleaning Swab – 5 Pack 507377-001
Cleaning Card - 10 Pack 552141-002
Cleaning Sleeve Kit - 5 Pack 569946-001
Cleaning Sleeve Kit - 10 Pack 570113-001
Cleaning Spindle 572880-001
Ribbon Cartridge Assembly 509204-999
Thermal Printhead Assembly 546504-999
Color Ribbon Kit - YMCKT (250 Yield) 534000-002
Color Ribbon Kit - YMCKT (500 Yield) 534000-003
Color Ribbon Kit - YMCKT (250 Yield Short Panel) 534000-004
Color Ribbon Kit - kt (1000 Yield) 534000-005
Monochrome Ribbon Kit - Dark Blue (1500 yield) 532000-003
Monochrome Ribbon Kit - White (1500 yield) 532000-004
Monochrome Ribbon Kit - Red (1500 yield) 532000-005
Monochrome Ribbon Kit - Silver (1500 yield) 532000-006
Monochrome Ribbon Kit - Green (1500 yield) 532000-007
Monochrome Ribbon Kit - Gold (1500 yield) 532000-008
Monochrome Ribbon Kit -Scratch Off (1500 Yield) 532000-009
Monochrome Ribbon Kit - Black HQ (500 yield) 532000-052
Monochrome Ribbon Kit - Black HQ (1500 yield) 532000-053
Monochrome Ribbon Kit - Metallic Silver (1500 yield) 532000-054
Monochrome Ribbon Kit - Metallic Gold (1500 yield) 532000-055
Stickicards (100 cards per box) 597640-001

All of the ribbon supplies listed above come in a kit that includes the ribbon, cleaning sleeve, and cleaning card.



Model

Item Part Number Description Quantity
1 509204-999 Ribbon Cartridge Assembly 1
2 504789-001 Ribbon Cartridge Lid 1
4 508812-001 Swingarm Lid 1
6 534090-001 Extended Base 1
7 803349-201 Enclosure Base Foot (Adhesive) 4
8 504804-001 Extended Enclosure 1
9 537009-001 Tray Base 1



100-Card Input Tray

Item Part Number Description Quantity
1 504802-001 100 Card Input Assembly (Includes Cover and Lid) 1
2 504784-001 25 Card Output Cover 1
3 543057-001 Interface Panel with LCD 1
4 504785-029 Front Bezel (Blank) 1
6 N/A See Input Hopper Frame on page 13. 1



Input Hopper Frame

Item Part Number Description Quantity
1 543759-001 Pick Block Assembly 1
2 543871-001 Pick Roller Assembly 1
3 553949-001 Gate Spring 1
4 504660-001 Input Hopper Frame 1
5 572868-001 Pick Gate Assembly 1
6 572871-999 Picker (Includes Crankshaft, Clutch and Drive Pick Gear) 1
9 535859-001 Pick Ribbon Motor 1
10 589060-001 Ribbon Drive Gear 1
11 810421-008 Screw Torx PH M2X8 2

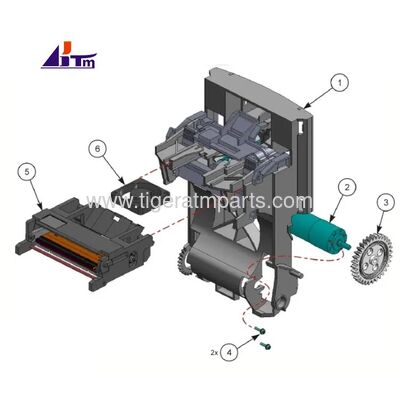

Swingarm

Item Part Number Description Quantity
1 504229-001 Swingarm Assembly 1
2 535859-001 Pick/Ribbon Motor 1
3 589060-001 Ribbon Drive Gear 1
4 810421-008 Screw Sems Torx PH M2X8 2
5 546504-999 Thermal Printhead Assembly 1
6 538862-001 Fan, 35x35x6 1



Drive Train, Right Side

Item Part Number Description Quantity
1 810450-001 Damper, Size 2 1
2 572888-001 Spring, Torsion, Swingarm 1
3 572770-001 Backup Roller 1
4 572762-001 Gear Cam 1
5 572763-001 Cam Idler Gear 1
6 572773-001 Cam Slide 1
7 572760-001 Cam Shaft 1
8 572771-001 Registration Backup Roller 1
9 572764-001 Backup Roller Bracket 3
10 505560-001 Backup Spring 3
11 572768-001 Top Cleaning Roller 1
12 551471-001 Card Guide Spring 1
13 505542-001 Card Guide 1
14 558323-005 Capstan, Roller Sleeve (Non Magnetic Stripe Only) 1



Drive Train, Left Side

Item Part Number Description Quantity
1 572773-001 Cam Slide 1
2 568093-001 Belt Tensioner Spring 1
3 572765-001 Cleaning Drive Roller 1
4 505560-001 Backup Spring 3
5 572764-001 Backup Roller Bracket 3
6 544482-001 Flanged Drive Pulley 35T 2
7 572772-001 Belt Tensioner 1
8 554202-001 Timing Belt 6MM W 334T P 2MM STD 1
9 574459-001 Belt Plate 1
10 572766-001 Registration Drive Assembly 1
11 544584-001 Idler Pulley 5
13 572767-001 Drive Roller 1
14 572761-001 Cam 1
15 572758-001 Platen Roller Assembly 1
16 542820-001 Platen Roller Plate 1



Miscellaneous Components

Item Part Number Description Quantity
1 552143-002 Adhesive Static Brush 2
2 566406-001 RFID Antenna Board 1
3 566752-001 Head Latch Sensor, Ribbon Reflective 1
4 566751-001 Card Input, Card Exit, and Cam Home Sensors, Wide Slot 3
5 569419-001 Gate Roller 1
6 809428-206 Screw Sems Torx PH M3X8 4
7 504226-001 Wire Retaining Clip 5
8 572789-001 Cam Drive Assembly 1
9 809561-005 Ferrite Bead 1
10 506335-994 Print Engine PWB Assembly (SD260L Standard D3) 1
506339-994 Print Engine PWB Assembly (SD360 Standard D3)
506339-995 Print Engine PWB Assembly (SD360 Open Card D3)
507428-998 Print Engine PWB Assembly (SD460 Standard D3)
11 572786-001 Transport Motor Assembly 1
12 504228-999 Transport Assembly 1
13 572899-001 Magnetic Encoder Board (Ribbon Motion) 1





Cables

Part Number Description Connection Quantity
574154-001 TPH Cable Assembly Printhead to Print Engine PWB 1
535644-001 Sensor Encoder Cable Assembly RFID Board to Print Engine PWB 1
535644-001 Sensor Encoder Cable Assembly Magnetic Encoder to Print Engine PWB 1
809519-001 6FT USB Cable Assembly (with Ferrite) Printer USB to PC USB. 1
809561-005 Ferrite Bead Ferrite bead installs around Printhead Fan and Ribbon Motor cables.



Power Supply and Cords

Part Number Description Quantity
804517-003 US/NA Power Cord. 10A, 18GA 3CND, 125VAC 1
809440-001 International Power Cord – Europe, 10A 1
809440-003 International Power Cord – U.K., 10A 1
809440-004 International Power Cord – Denmark, 10A 1
809440-005 International Power Cord – India, 10A 1
809440-007 International Power Cord – Italy, 10A 1
809440-008 International Power Cord – Switzerland, 10A 1
809440-009 International Power Cord – China, 10A 1
809440-010 International Power Cord – Australia, 10A 1
809440-011 International Power Cord – Israel, 10A 1
809440-012 International Power Cord – Brazil, 10A 1
809445-001 International Power Cord – Japan, 7A, 125V 1
810499-001 Power Supply 1



Non-Magnetic Stripe

Item Part Number Description Quantity
1 572774-001 Ribbon Bridge 1
2 552143-002 Adhesive Static Brush 1
3 572764-001 Backup Roller Bracket 1
4 543346-001 Backup Spring 1
5 558323-005 Capstan Roller Sleeve 1
6 572771-001 Registration Backup Roller 1
7 566753-001 Ribbon Index Sensor, Ribbon Reflective Photocell 1



Magnetic Stripe Option, ISO (IAT), JIS (NTT)

Item Part Number Description Quantity
1 543346-001 Backup Spring 1
2 538849-001 Encoder Mounting Bracket 1
3 806850-410 Torx Screw 1
4 811312-001 Optical Encoder 1
5 809429-108 Phillips Screw 2
6 538819-001 Magstripe Encoder Cable Assembly 1
7 807519-104 Standoff 2
8 569585-001 Magnetic Stripe Board 1
9 543829-001 Read/Write MS Head 3-Track Gimbal ISO 1
543830-001 Read/Write MS 1-Track Gimbal JIS
10 538891-001 Magstripe Rocker Assembly 1



Smart Card Options

Item Part Number Description Quantity
2 588345-001 Smart Card Base Lid 1
4 541756-001 Cable Assembly, Smart Card Option to Main Board 1
5 535349-001 Contact Smart Card Mount 1
6 588304-001 Smart Card Card Guide 1
7 574318-001 Option Interface PWA Assembly 1
8 566751-001 Wide Slot Photocell (Smart Card Registration) 1
9 552143-002 Adhesive Static Brush 1
10 588296-001 Smart Card Base, Duplex 1
12 569419-001 Gate Roller 1
13 503396-001 Smart Card Station Spring 1



Smart Card Reader Options
Item Part Number Description Quantity
Identive Dual Contact/Contactless Smart Card Only
Item Part Number Description Quantity
3 566348-001 Smart Card Contact Block Board 1
-- 503185-001 Cable Assembly, Dual Smart Card 1
14 80759-011 Standoff 2
15 509443-999 Dual Smart Card Reader 1

iCLASS or pcProx Card Reader/Writer Only
Item Part Number Description Quantity
16 810040-001 iCLASS Read/Write, USB 1
810040-002 iCLASS Read Only, USB 1
810280-001 pcProx Read Only, USB 1
811158-001 pcProx Plus Read Only, USB 1

Duali Single Wire Smart Card Only
Item Part Number Description Quantity
3 566348-001 Smart Card Contact Block Board 1
-- 506265-001 Cable Assembly, Duali Smart Card 1
-- 504502-001 Cable Assembly, Duali USB 1
17 810726-001 Duali Single Wire Dual Smart Card Reader 1
18 504328-001 USB Host Board 1
19 807519-102 Spacer, Mini Push-In 2
20 810129-102 Standoff, Mini 1

Duplex Assembly
Item Part Number Description Quantity
1 554279-002 Duplex Drive Roller 2
2 538693-001 Option Frame Assembly 1
3 807407-021 Wire Routing Standoff 7
4 566751-001 Wide Slot Photocell Assembly (Duplex Home) 1
5 571703-001 Flipper Control PWA 1
6 538272-001 Back Idler Roller Spring 2
7 800257-060 Dowel Pin 2
8 538271-001 Backup Idler Roller 2
9 538617-001 Stepper Motor Assembly 2
-- 503016-001 Duplex Option Cable Assembly (to Main Board) 1

100-Card Output Tray
Item Part Number Description Quantity
  See Price Pages 100 Card Output Assembly
1 504795-001 Output, 100 capacity 1
2 803349-201 Self Adhesive Bumper 4
3 545495-001 Pedestal Tray 2

Lock Option
Item Part Number Description Quantity
  See Price Pages Kensington Lock Option





Label:

Datacard CE840 ID card embosser,

PVC plastic ID card printer,

CE840 embosser spare parts

Rincian kontak
Tiger Spare Parts Co., Ltd

Kontak Person: Elin Chen

Tel: +86 13926975636

Mengirimkan permintaan Anda secara langsung kepada kami (0 / 3000)

Tentang

Bagian ATM NCR

445-0752091 4450752091 NCR Selfserv Estoril PC Inti Bagian Mesin ATM

Pasokan Semua NCR SelfServ S2 Dispenser Modul Mesin ATM suku cadang

Bagian NCR ATM Modul GBRU Dan Semua Bagian Mesin ATM Untuk Penggantian

Diebold Nixdorf bagian ATM

Diebold Nixdorf DN100 DN150 DN200 DN250 DN400 DN450 ATM suku cadang

01750304622 Diebold Nixdorf DN200 Card Reader ICT3H5-3AD2792 Bagian ATM

Diebold Nixdorf ATM suku cadang EPP7 BSC Keypad 01750344829 1750344829

Tinggalkan pesan

Kebijakan pribadi | Cina Bagus Kualitas Diebold Nixdorf bagian ATM Pemasok. © 2024 - 2025 Tiger Spare Parts Co., Ltd. All Rights Reserved.
